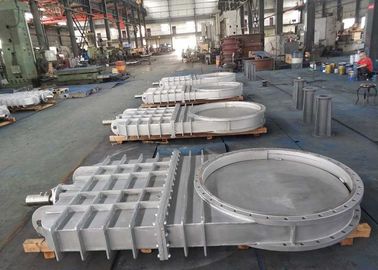

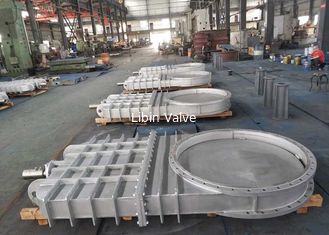

DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA

I'm Online Chat Now

DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA

DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA
DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA

Large Image :  DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA

Product Details:

Payment & Shipping Terms:

Payment Terms: T/T
Detailed Product Description
Product Name: Resilient Seated Gate Valve Power: Electric,Handwheel Operated
Temperature Of Media: Medium Temperature,Normal Temperature Standard: ANSI BS DIN
Body Material: Ductile Iron,Stainless Steel 304 Working Pressure: 1.0MPa-2.5MPa
Connection: Flange Ends,Flange Connection Color: Customer's Request
High Light:

resilient seated gate valve

,

ductile iron gate valve

Seat Gate Valve,Double Flow Direction, Opening And Closing Of Pipeline



Advantage
1. Small flow resistance. The medium passage inside the valve body is straight through, the medium flows in a straight line, and the flow resistance is small.
2. It is more labor-saving when opening and closing. Compared with globe valves, the gate moves in a direction perpendicular to the direction of medium flow, whether opening or closing.
3. The opening and closing journey of the gate is large, and the lifting is carried out by screw.
4. Water hammer is not easy to occur because of long closing process.
5. The medium can flow in any direction on both sides and is easy to install. Both sides of gate valve passage are symmetrical.
6. The length of the structure (the distance between the two connecting ends of the mooring shell) is small.
7. Simple in shape, short in length, good in manufacturing technology and wide in application.
8. Compact structure, good rigidity of valve, smooth passage, small flow resistance, stainless steel and cemented carbide sealing surface, long service life, PTFE packing, reliable sealing, easy and flexible operation.

Property Name Property Value
Product name Gate Valve
Material Stainless Steel,Ductile iron
Power Electric,Handwheel Operated
Temperature Medium Temperature,Normal Temperature
Working pressure 1.0MPa-2.5MPa
Body material Ductile Iron,Stainless Steel 304
Connection Flange Ends,Flange Connection
Color Customer's Request, Customized

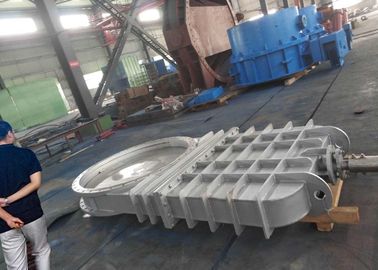

DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA 0DN1200 Double Flow Direction Metal Seated Gate Valve , Stainless Steel Gate Valve Pressure 1.0-2.5MPA 1
