Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve

I'm Online Chat Now

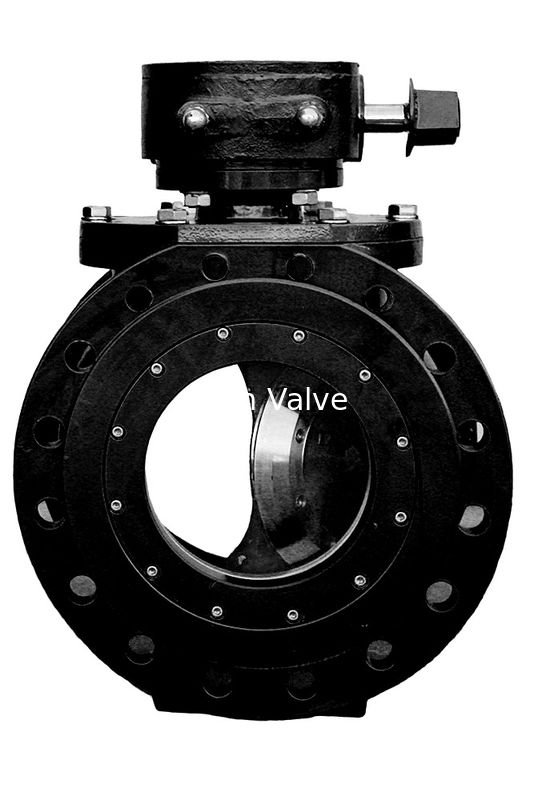

Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve

Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve
Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve

Large Image :  Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve

Product Details:

Payment & Shipping Terms:

Payment Terms: T/T
Detailed Product Description
Material: Stainless Steel, Ductile Iron, Power: Worm Gear, Pneumatic, Electric, Etc
Connection: Flange Ends, Mechanic Joint Usage: Control Water Flow
Product Name: Metal Seated Ball Valve Color: Customized
High Light:

metal seated ball valve

,

cast iron ball valve

Metal Seated Ball Valve, Metal Seated Eccentric Ball Valve, Metal Seated Half Ball Valve



Structural characteristics

1. Fluid resistance is small and its coefficient of resistance is equal to that of the same length of pipe.

2. Single seat design. It eliminates the problem that the medium in the valve chamber will affect the safety of operation due to abnormal boosting.

3. Low Torque Design. Easy to operate, quick to open and close, from full to full switching as long as the rotation of 90 degrees, easy to control over long distances.

4. Wedge seal structure. The valve is sealed by the mechanical force provided by the stem, which presses the ball wedge onto the valve seat, so that the sealing of the valve is not affected by the variation of pipeline pressure difference, and the sealing performance can be guaranteed reliably under various working conditions.

5. Self-cleaning structure of sealing surface. When the sphere tilts away from the valve seat, the fluid in the pipeline passes through the sealing surface of the sphere at 360 degrees evenly, which not only eliminates the local erosion of the high-speed fluid to the valve seat, but also washes away the accumulation on the sealing surface, so as to achieve the purpose of self-cleaning. When fully open or fully closed, the sealing surface of the sphere and seat is isolated from the medium. When the medium passes through, the erosion of the sealing surface of the valve will not be caused.

6. Maintenance is convenient, ball valve structure is simple, sealing ring is generally movable, disassembly and replacement are more convenient.

Property Name Property Value
Product Name Eccentric Semi Ball Valve,Eccentric Ball Valve
Structure Ball, Full port,Eccentric, Offset
Material Stainless Steel, Ductile Iron,
Power Worm Gear, Pneumatic, Electric, etc
Color Black, Blue, Customized
Connection Flange Ends, Mechanic Joint
Usage Control Water Flow



Single Seat Design Half Ball Valve , Small Fluid Resistance Metal Seated Ball Valve 0
