DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power

I'm Online Chat Now

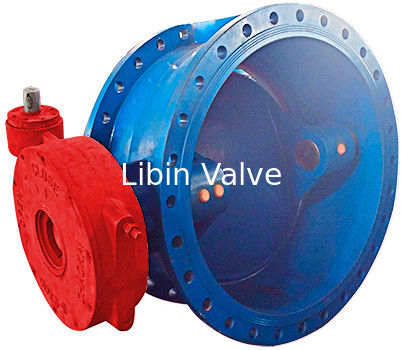

DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power

DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power
DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power

Large Image :  DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power

Product Details:

Payment & Shipping Terms:

Payment Terms: T/T
Detailed Product Description
Material: Cast Iron Power: Electromotion,Hydraulic
Pressure: High Pressure Structure: Butterfly,Ball
Body Material: Casting Iron Name: Cast Iron Butterfly Valve
High Light:

double offset butterfly valve

,

water butterfly valve

Ball Butterfly Valve,Ball Butterfly Valve, Metal,Offset, Casting



1. The valve can achieve two-way zero leakage(forward and backward direction to withstand 1.1 times the rated nominal pressure zero leakage). Using eccentric, floating ball valve board seat. The installation of the rotation center and the seat of the valve core center one eccentricity between the delta(pictured), all closed, valve if it shut down a tiny angle, valve seat sealing surface and the spherical valve core can produce interference, which will produce a lot of extrusion between sealing surface, forming high sealing pressure ratio, implementing strict sealing pressure condition. Valve of the eccentricity of the delta valve is closely theoretical calculation( hydraulic calculation, the bending stiffness and torsional rigidity calculation of eccentric shaft, spherical cap and valve seat deformation calculation, etc.) to meet the requirements of two-way valve seal.
2. The sealing surface does not wear, jam or pull. Due to eccentric ball structure and eccentricity valves give full consideration to the hydraulic characteristics of the fluid and material mechanical properties, when the valve is opened, the valve core is turning a small angle, the valve core and valve seat sealing surface out of. when the valve is closed, the spool and seat contact each other at the last minute to reduce wear Seal are axial float, float distance compensating valve plate installed in hydrostatic pressure, temperature stress, stress under the action of deformation, so the seal between the sealing pressure ratio is basically a constant value, sealing surface does not produce occlusion and strain.
3. The sealing surface has self-purification ability. Dirt, weed, sticks and wire, can be cut off by valve closing seat design.

Property Name Property Value
Product Name  Eccentric Ball Butterfly Valve,Ball Butterfly Valve,Offset Ball Butterfly Valve
Material Cast Iron
Power Electromotion,Hydraulic
Pressure High Pressure
Structure Butterfly,Ball
Body material Casting iron



DN1000 Metal Double Eccentric Butterfly Valve / Cast Iron Butterfly Valve Electromotion Power 0
