DN500 Check Valve / Ductile Iron Check Valve / Swing / Non-Return Valve

I'm Online Chat Now

DN500 Check Valve / Ductile Iron Check Valve / Swing / Non-Return Valve

Detailed Product Description
Pressure: Medium Pressure Port Size: DN200-DN800
Material: Carbon Steel Structure: Swing Check Valve
High Light:

DN500 Ductile Iron Check Valve

,

PN16 Swing Check Valve

,

PN25 Non Return Valve

Swing Check Valve,Check Valve,Non-Return Valves,Reflux Valve,



A check valve is a device that only allows the flow of fluids in one direction. They have two ports, one as an inlet for the media and one as the output for the media. Since they only allow media flow in one direction, they are commonly referred to as ‘one way valves’ or ‘non return valves.’ The main purpose of a check valve is to prevent backflow in the system.
A check valve relies on a pressure differential to work. They require a higher pressure on the input side of the valve than the output side to open the valve. When the pressure is higher on the outlet side (or the input side pressure is not high enough), the valve will close. Depending on the valve type, the closure mechanism is different. Unlike other valves, they do not need a handle, lever, actuator, or human to correctly work.

They are commonly installed in applications that backflow would cause an issue. However, since they are non return valves, they are a cheap, effective, and easy solution to solve a potential issue. Backflow can cause an issue if the backflow is contaminated, and therefore, contaminates the media upstream. For example, a sewer line will have a non return valve to ensure that waste can leave but not re-enter the system. They are also used if backflow will cause damage to equipment upstream that can only allow media to flow in one direction. For example, a reverse osmosis filter can only have water pass through it in one direction, so a one way valve is installed downstream to prevent this. There are various sizes, designs, and material to ensure there is a check valve for every application.

Property Name Property Value
Product Name Swing Check Valve,Check Valve,Non-Return Valves,Reflux Valve
Pressure PN10, PN16, PN25
Body material Stainless Steel,Ductile Iron
Temperature Up to 120°C
Color Customized

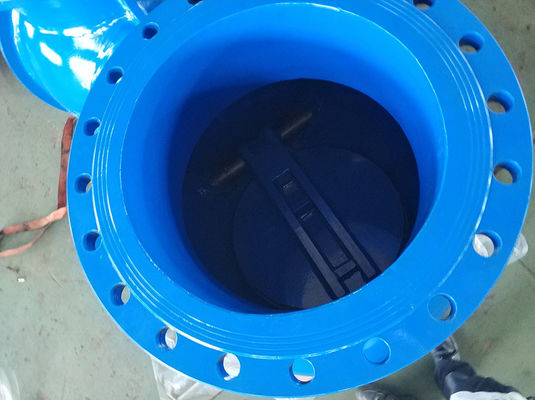

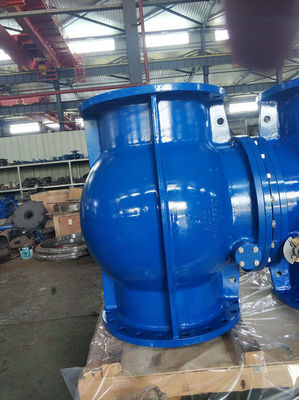

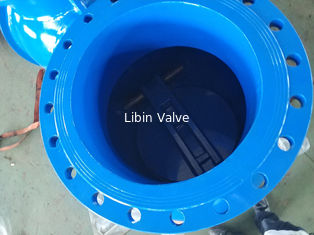

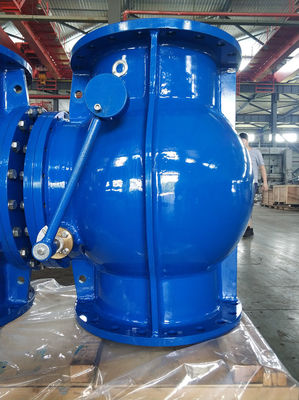

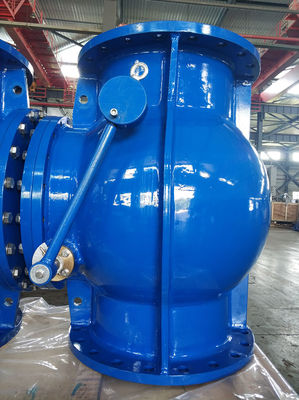

DN500 Check Valve / Ductile Iron Check Valve / Swing / Non-Return Valve 0DN500 Check Valve / Ductile Iron Check Valve / Swing / Non-Return Valve 1DN500 Check Valve / Ductile Iron Check Valve / Swing / Non-Return Valve 2
