|Product Name:||Ductile Iron Plug Valve||Pressure:||Medium Pressure,High Pressure,PN 1.0/1.6Mpa(150/200PSI)|
|Connection:||Flange, Mechanic Joint||Operator:||Handwheel, Worm Gear Electric/Pneumatic/Hydraulic Actuator|

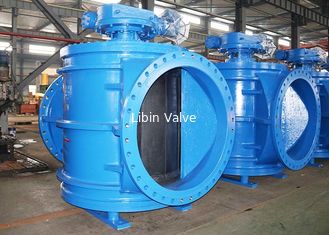

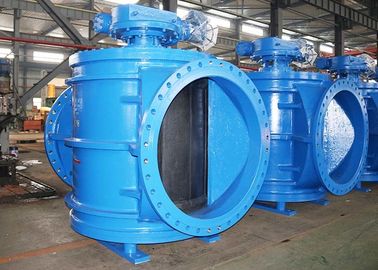

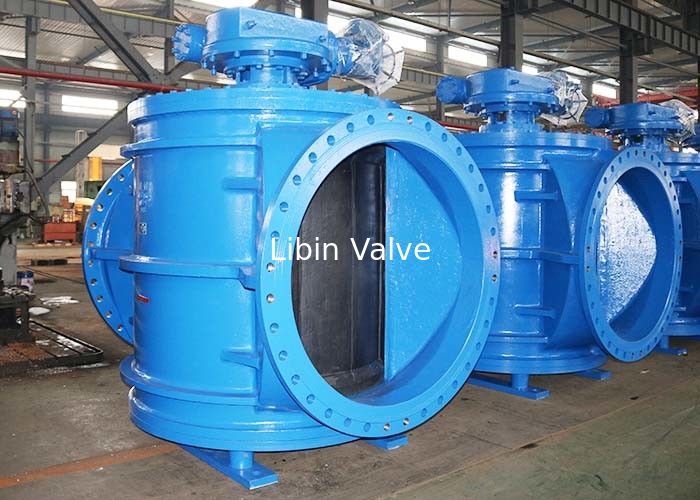

DN1400 Ductile Iron Plug Valve,
ductile iron plug valve,
Moisture Proof Water Plug Valve
Eccentric Plug valve,Full Port, SS, Ductile Iron, Zero Leakage
Eccentric plug valve mostly used for water supply and sewage systems, is a zero-leakage, moisture damage, maintenance-free, high-life valve, The valve of the long history in Europe and the United States to use, far more than the amount of use of traditional valves like gate valves and butterfly valve, this valve is the largest used amount of water valves industry. Valve varieties explosive growth of today, sales of eccentric rotary valve has been ranked first in the US and European water valve market.
1. Spool to spin 90 degree to complete the valve opening and closing. Integrated ductile iron increases the strength of the plug and makes sure that the installation position correction accuracy. When the valve is opened, the plug is rotated to the side of the body cavity, avoiding the channel in the direction of flow of the fluid, which may prevent further use of plug fluid on the impact and destruction, prolong life. All inclusive rubber plug rubber sealing surface can achieve a tight seal zero leakage. Plug valve within the operating pressure range can be bi- directional zero leakage seal.
2. Fluid flow in from the round port area and pass thru the rectangular path. From round to rectangular, the flow will flush the seat surface and clean up the dirt so to prevent the accumulation of the dirt. When valve closing, the dirt could be pushed off. And rubber seat will surround the seat surface so to assure 100% seal.
3. Full port design, no port shrinking, low head loss.
4. Full top opening bonnet, if the valve end of its life; simply replace the valve cover to complete the dismantling of the valve update.
5. Long life, maintenance-free. Sealing surface with 95% nickel or SS304 stainless steel welding process, the valve seat and valve connected as a whole, can effectively prevent the tap rubber sealing surface corrosion or rust destroy media. Projection of the sealing surface to ensure that the rubber plug and only a nickel or stainless steel contacts, can greatly improve the life of rubber encapsulated. Rubber encapsulated spool, does not rust. Gravel pad protection by reducing the contact with the fluid in the debris to increase the service life of packing and sleeve jacket.
|Property Name||Property Value|
|Product Name||Eccentric Plug Valve, Offset Plug Valve, Full Port Plug Valve, Plug Valve|
|Pressure||Medium Pressure,High Pressure,PN 1.0/1.6/2.5Mpa|
|Connection||Flange, Mechanic Joint|
|Operator||Handwheel, Worm Gear, Electric/Pneumatic/Hydraulic Actuator|
